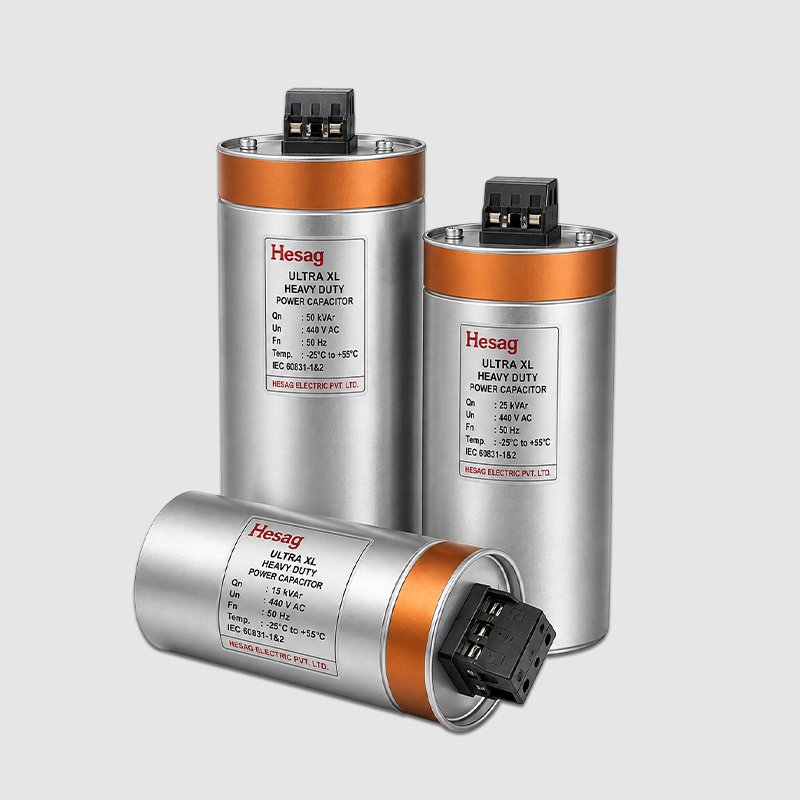

Ultra Xl Heavy Duty

Specification	Value / Detail
Standards	IS-13340-2012 / IEC 60831-1/2
Rated Output	5, 7.5, 10, 12.5, 15, 20, 25 kVAr
Rated Voltage	440–525 V
Rated Frequency	50 / 60 Hz
Over Current	3.5 × In
Capacitance Tolerance	−5% to +10% as per standard
Inrush Current	Up to 500 × In
Losses	< 0.20 W/kVAr (Dielectric)< 0.45 W/kVAr (Total)
Casing	Cylindrical Aluminium Can
Life Expectancy	210,000 Hrs.
Temperature Class	40 / 55°C
Safety Features	Over-Pressure Disconnector
