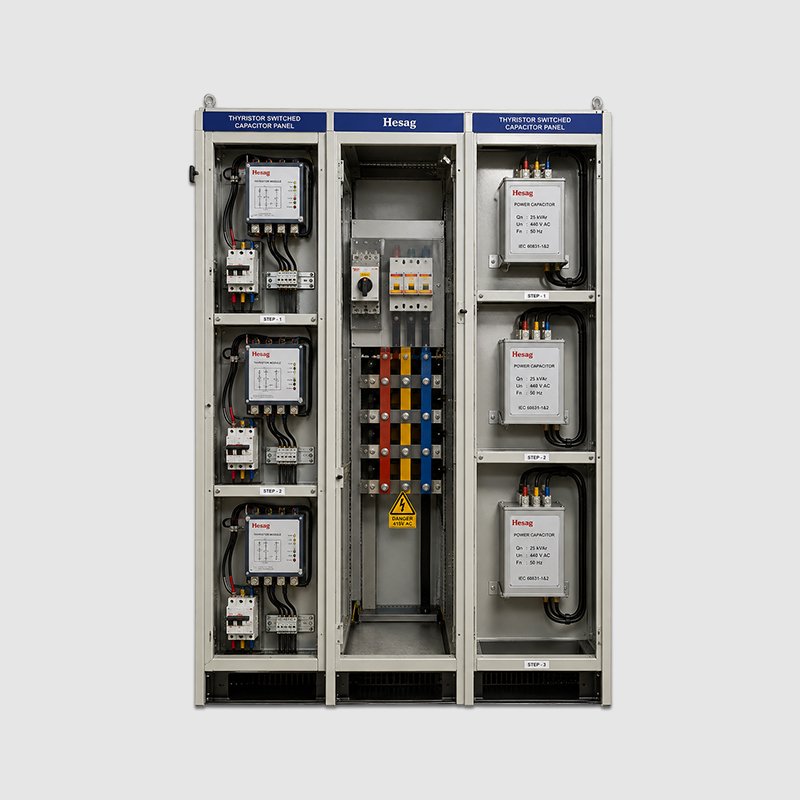

Thyristor Switched Capacitor Panels

Specifications

• Voltage: 415V/440V/550V/660V/750V, 3 phase
• Frequency: 50 Hz/60 Hz
• Intelligent power factor correction upto 16 stages
• Switching device: Thyristors (SCR) module equipped with SCR, heat sink, firing module. Temperature: - 5 deg * C to 45 deg * C
• Metal cabinet (indoor) powder coated with IP4X & forced cooling fan.
• Incomer: MCCB/ACB/SFU
• Equipped with ventilation system (Forced) with centrifugal backward curved type fan.

Features:

• Zero voltage switching terminology with intelligent electronic control.
• Smooth, surgeless, transient free switching of capacitor which will not cause disturbances to sensitive networks or neighbouring equipments.
• Fast & fine correction of Power Factor.
• Line chokes for thyristor, di/dt protection & detuned filter usage.
• Transient free switching causes long life of system components without limitations of number of switching operations.
• Current free wheeling low wattage resistors across Series Reactor to reduce insulation stresses which forms RLC circuit.
