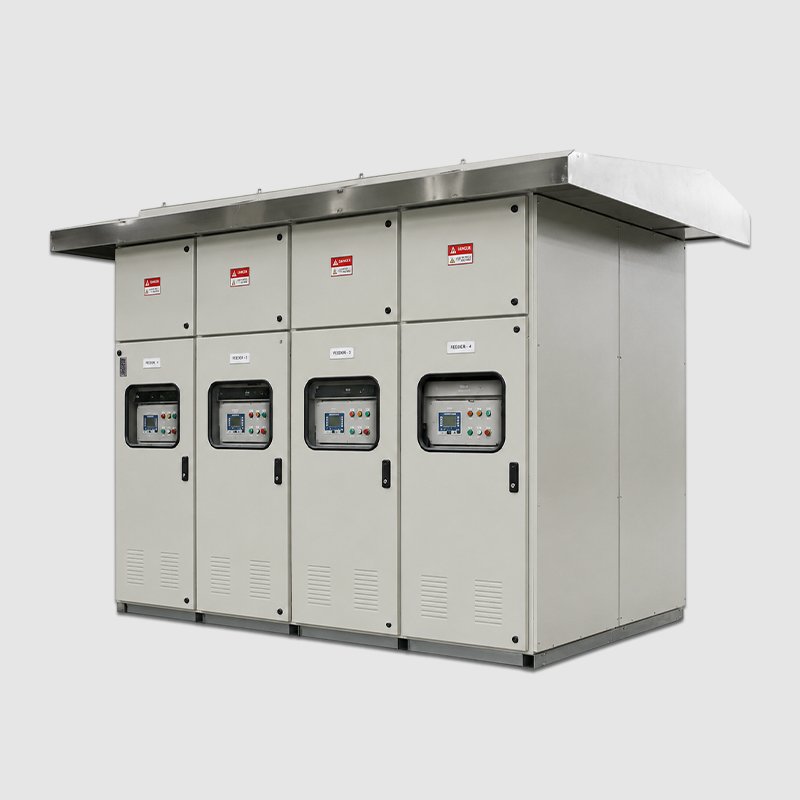

Automatic power factor correction systems are optimal solution for varying load patterns where there is demand for varying reactive power to meet desired Power Factor.
- Targeted programmed power factor can be achieved by installing MV APFC.
- Leading power factor conditions by fixed compensation can be avoided.
- Single centralized power factor correction system which saves investments in giving compensations at various points.
- Additional reactive power is possible by adding steps in the existing system.
Individual Compensation:
In this type of system capacitors are connected at load end for individual load reactive power compensation is fulfilled as per requirement. (Fig. 1)
Central Compensation:
To compensate overall reactive power of the system, this type of compensation is used. It is normally connected at transformer secondary. As per requirement we can adopt protection scheme for the system. (Fig. 2)
- Available in 3.3KV, 6.6KV, 11 KV system
- Compact design & ease for handling.
- Auto as well as manual operated.
- Local as well as remote operation for Metal clad enclosed system.
- Power factor correction with harmonic suppression filter/inrush current limiting reactor.
