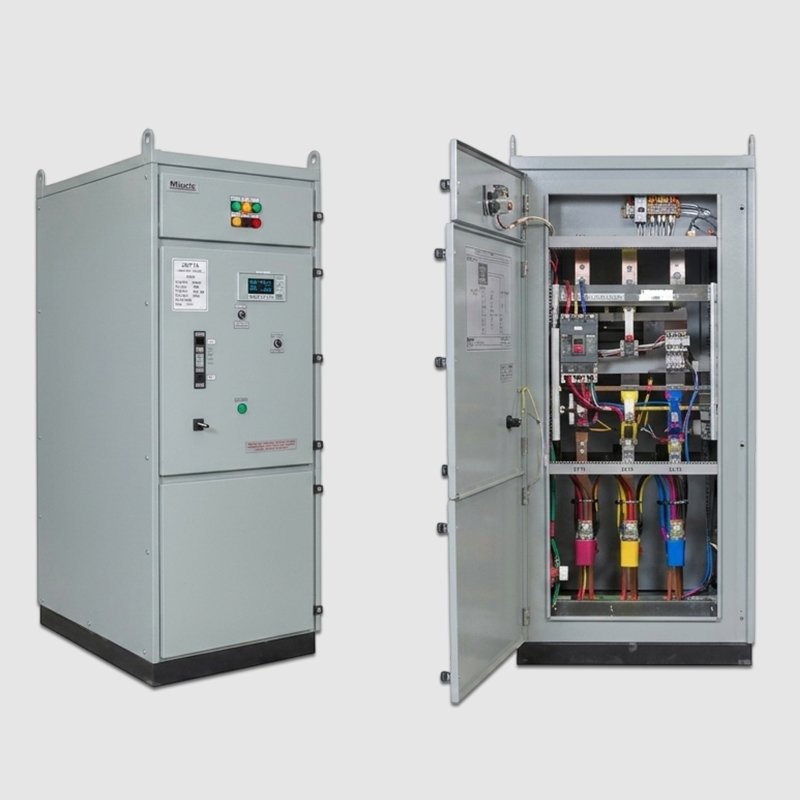

Load Break Switch

Technical Specifications

Characteristics	Value
Rated Voltage	12 kV
Rated Current	630 / 1250 A
Power Frequency Withstand Voltage	28 kV RMS
Impulse Withstand Voltage	75 kV Peak
Frequency	50 Hz
Rated Short-Time Withstand Current	26.3 kA for 3 seconds
Rated Making Current	66 kA Peak
Type of Break	Air Break / SF₆
LBS Dimensions	—
Width	600 / 500 mm
Depth	1025 / 1055 mm
Height	1600 / 1300 mm
Weight	182 / 160 kg
Reference Standard	IS 9920
