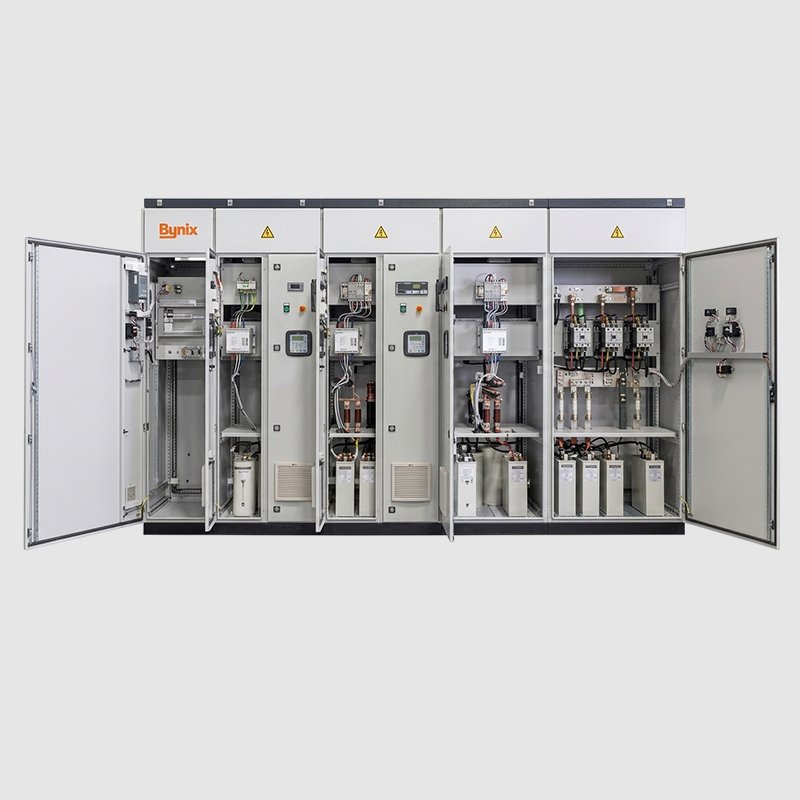

Contactor Switched Apfc Systems

Series	Model / Rating (kVAr)	Size with APP Capacitors (W × D × H) mm	Size with MPP Capacitors (W × D × H) mm	Step Configuration
LVAS-C	150	1300 × 850 × 2300	1300 × 850 × 2000	25K × 6
LVAS-C	200	1300 × 850 × 2300	1300 × 850 × 2000	50K × 2 + 25K × 4
LVAS-C	300	1500 × 850 × 2300	1500 × 850 × 2000	50K × 4 + 25K × 4
LVAS-C	400	1700 × 850 × 2300	1700 × 850 × 2000	50K × 8
LVAS-C	500	1950 × 850 × 2300	1950 × 850 × 2000	100K × 2 + 50K × 6
LVAS-C	600	2100 × 850 × 2300	2300 × 850 × 2000	100K × 4 + 50K × 4
LVAS-C	700	2300 × 850 × 2300	2300 × 850 × 2000	100K × 6 + 50K × 2
LVAS-C	800	2300 × 850 × 2300	2300 × 850 × 2000	100K × 8
