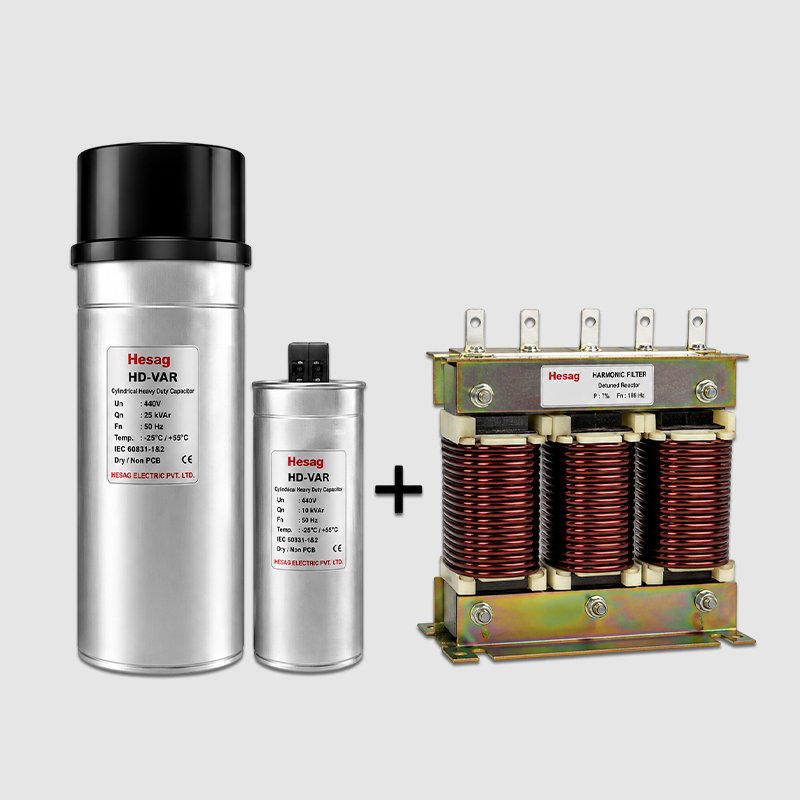

Combo Harmonic Filter

Effective kVAr @ 440V	Qₙ at 480V (7%)	MFD × 3	Iₙ (A) at 480V	L (mH)	I (A)
10	11.06	50.95	13.30	4.610	14.43
12.5	13.83	63.69	16.64	3.710	18.04
15	16.59	76.42	19.96	3.090	21.65
25	27.65	127.37	33.26	1.850	36.08



Effective Output @ 440V (kVAr)	Nominal Capacitor Rating @ 525V (kVAr)	Capacitance (μF × 3)	Nominal Capacitor Current @ 525V (A)	Reactor Inductance (mH)	Total Step Current (A)
10	13.23	50.95	14.55	4.610	14.43
12.5	16.54	63.69	18.19	3.710	18.04
15	19.85	76.42	21.83	3.090	21.65
25	33.08	127.37	36.38	1.850	36.08
